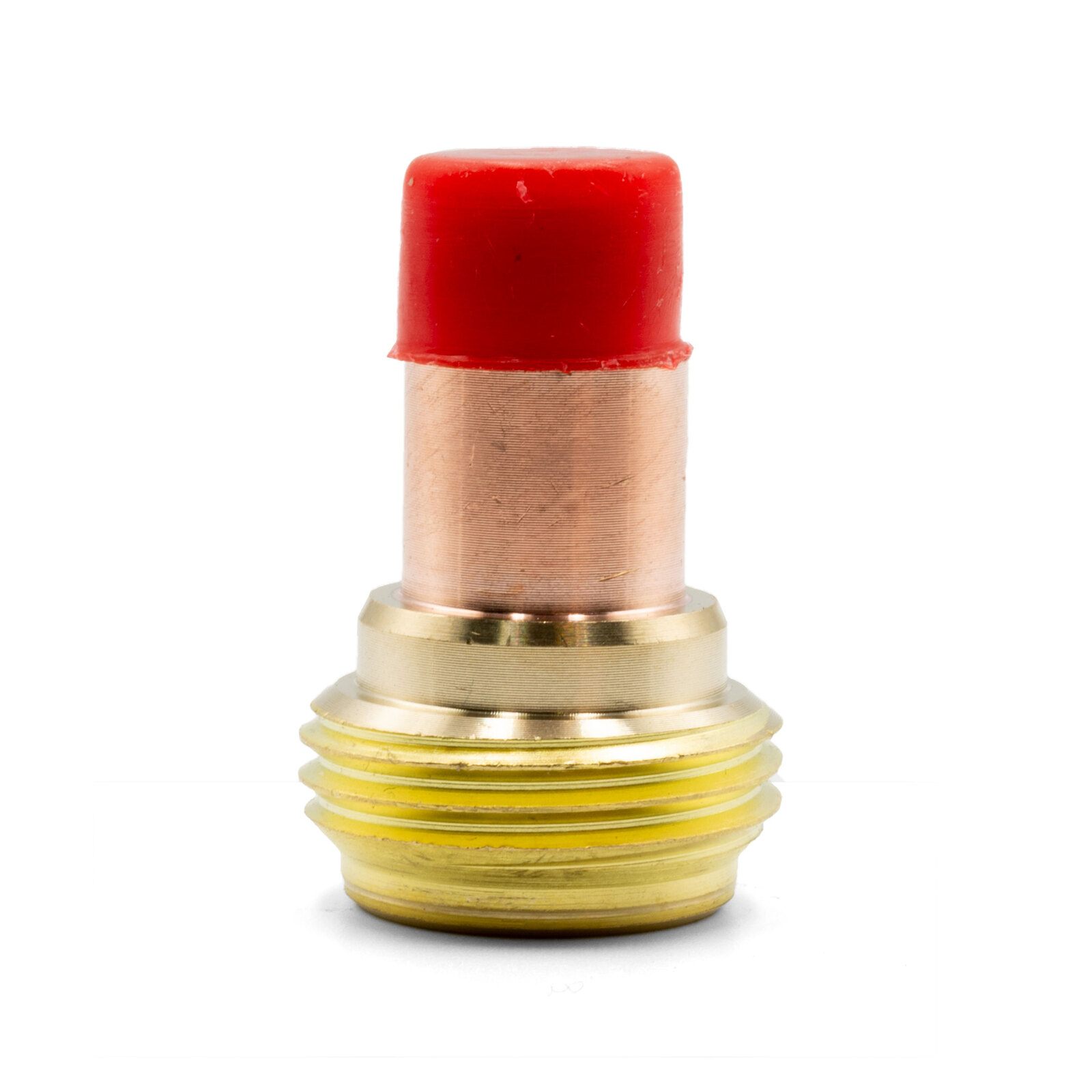

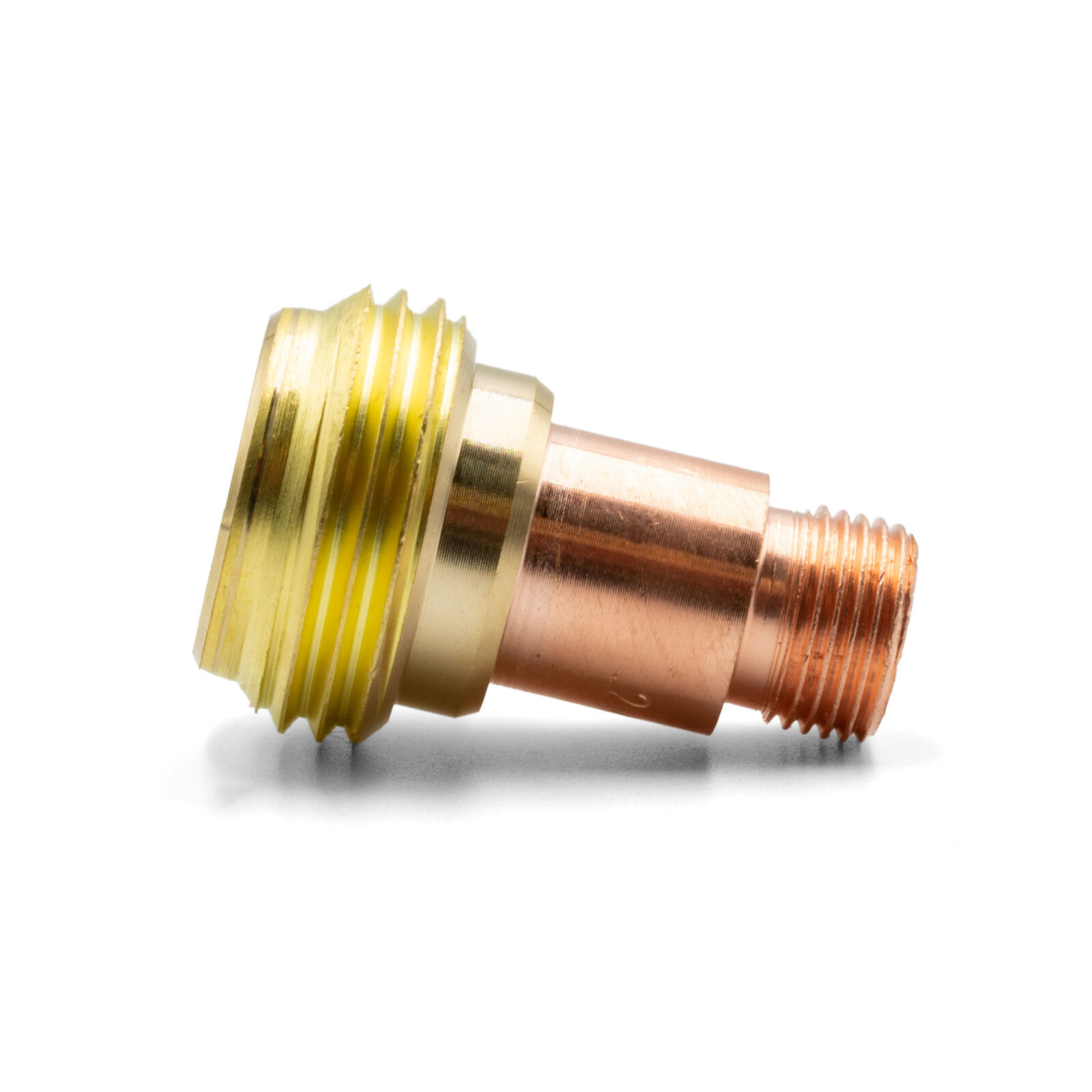

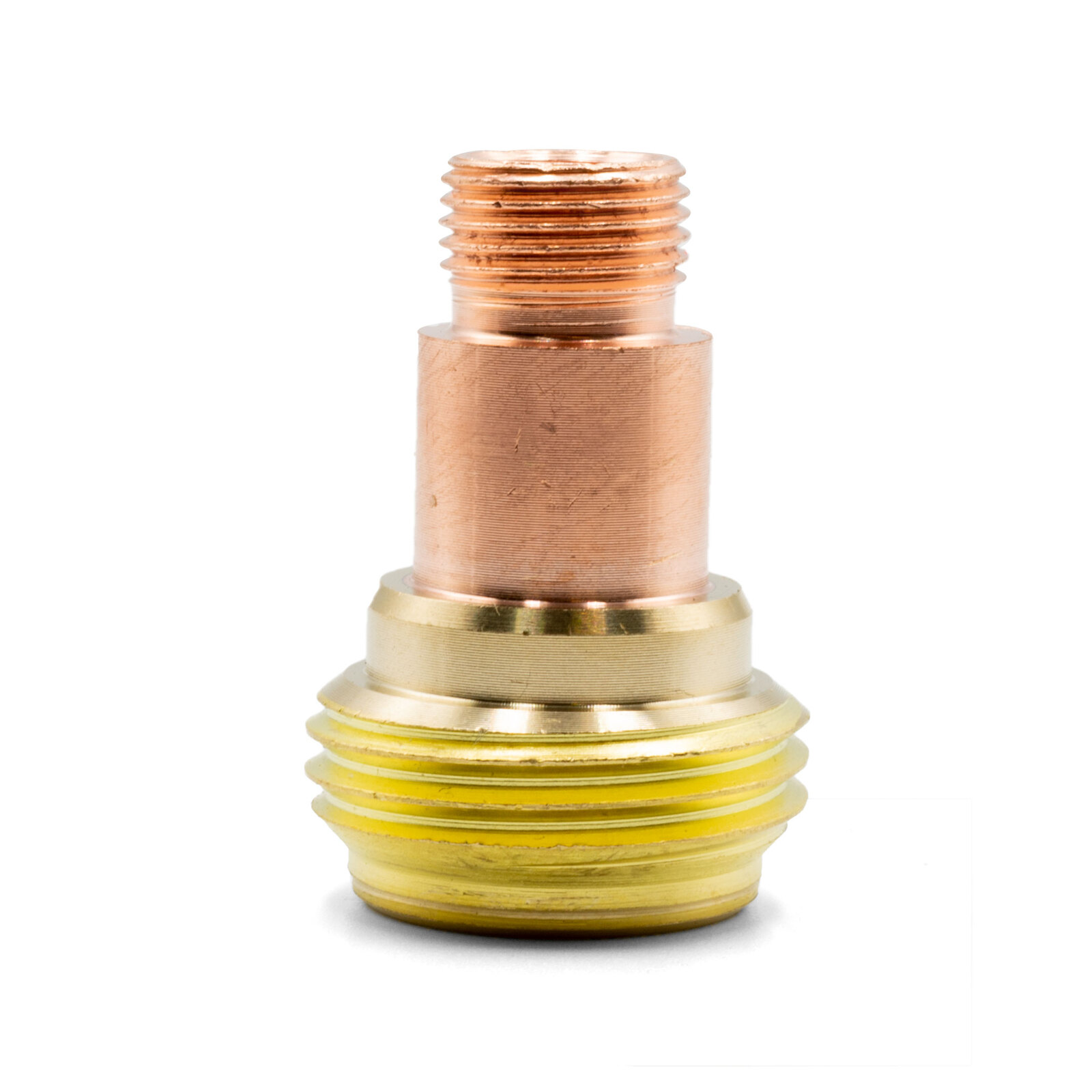

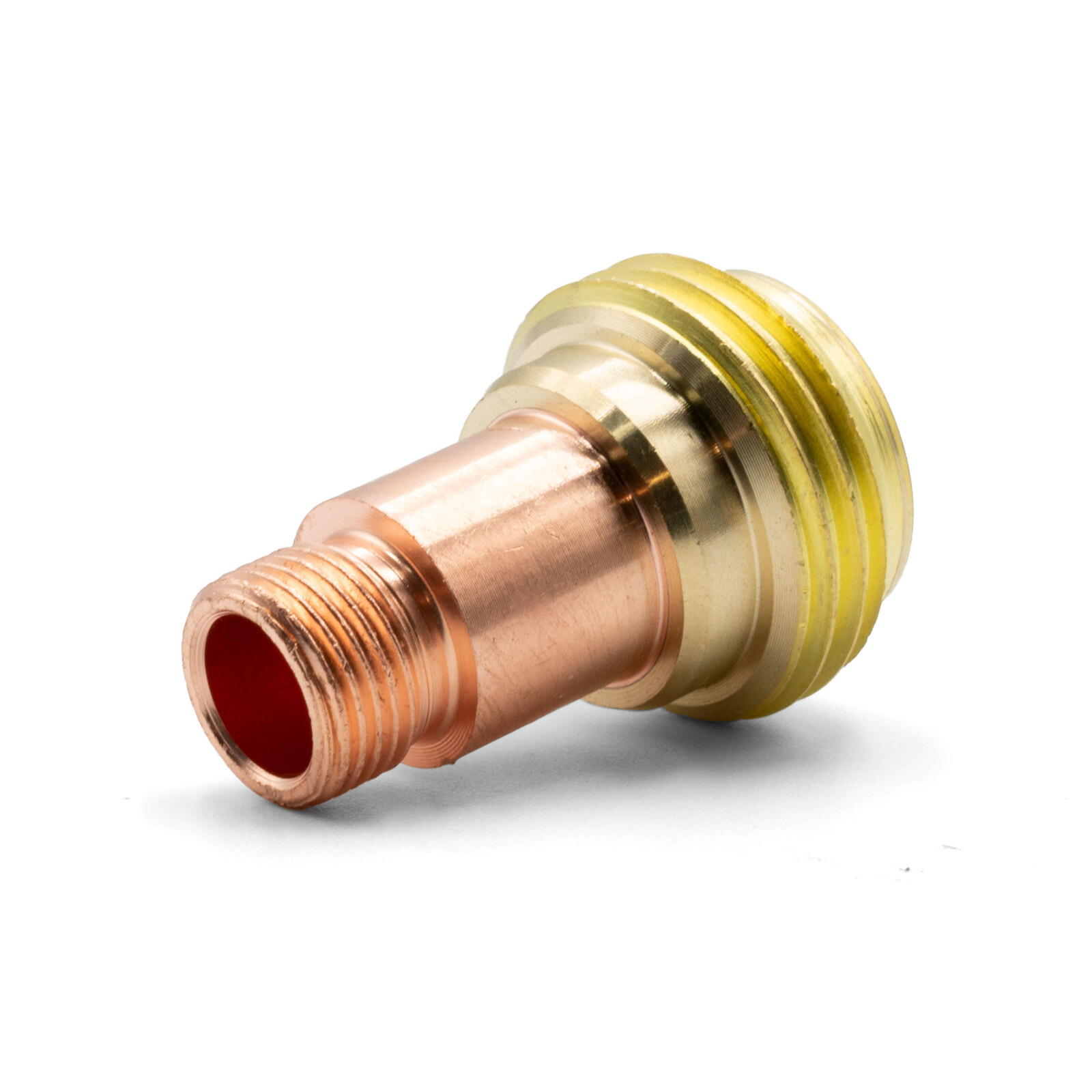

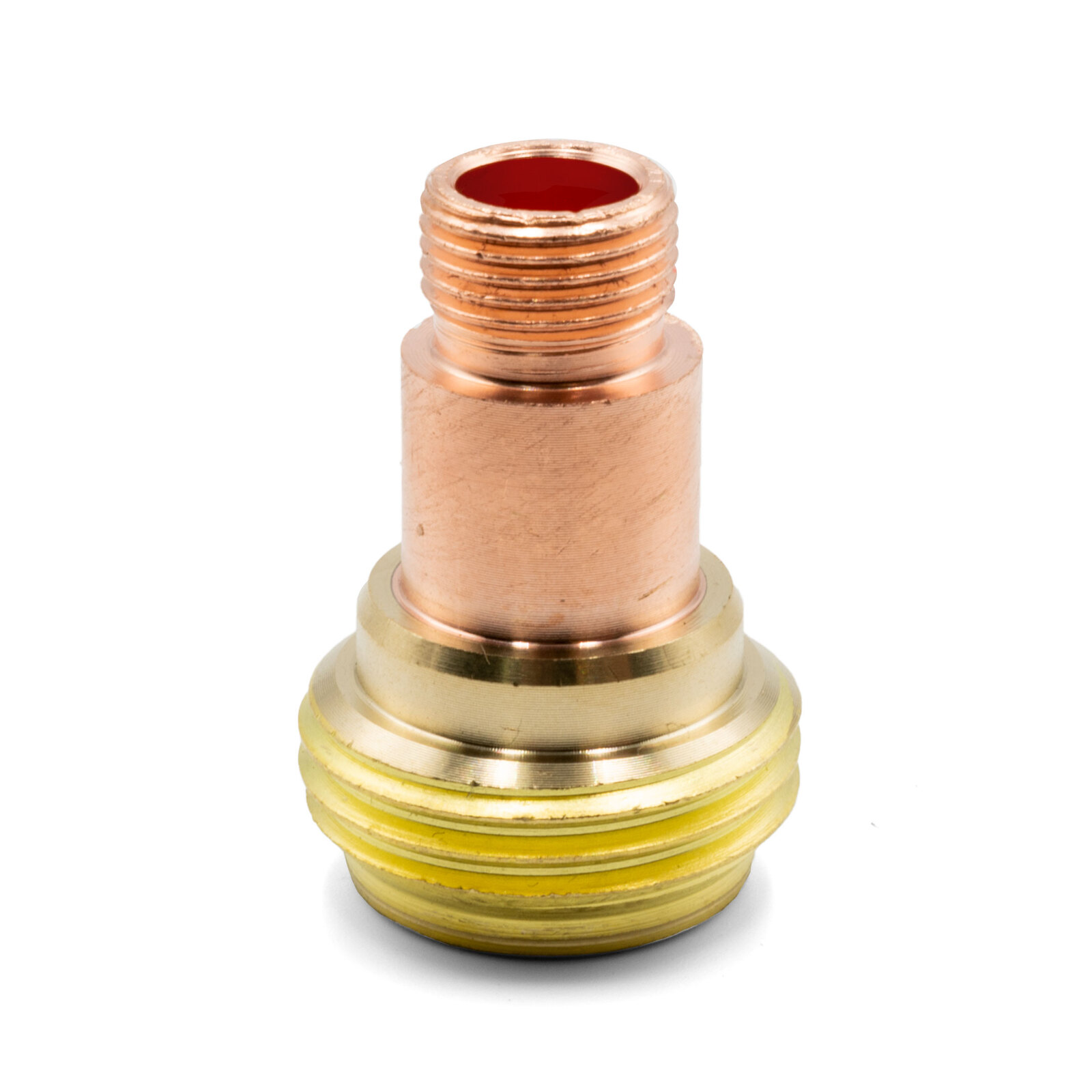

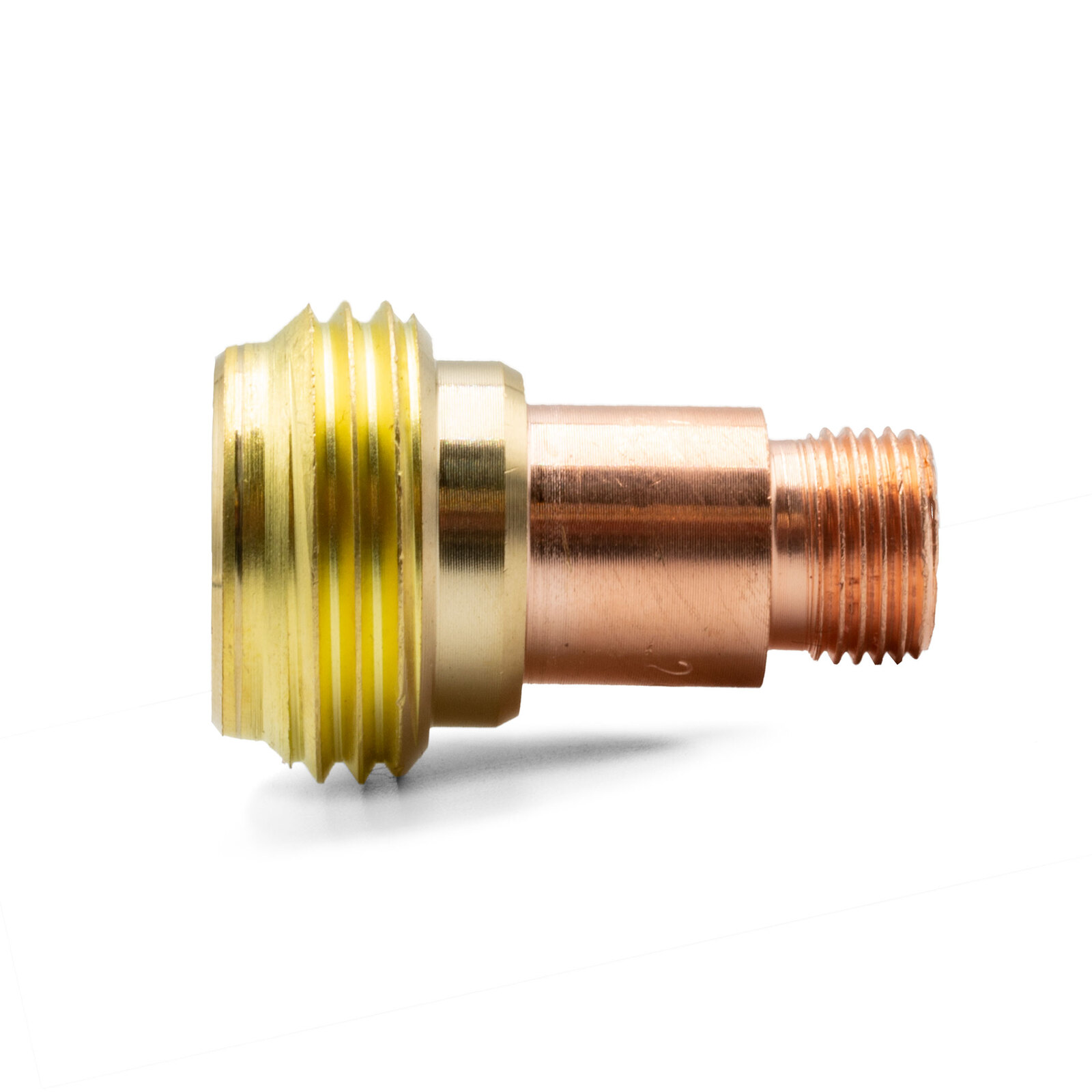

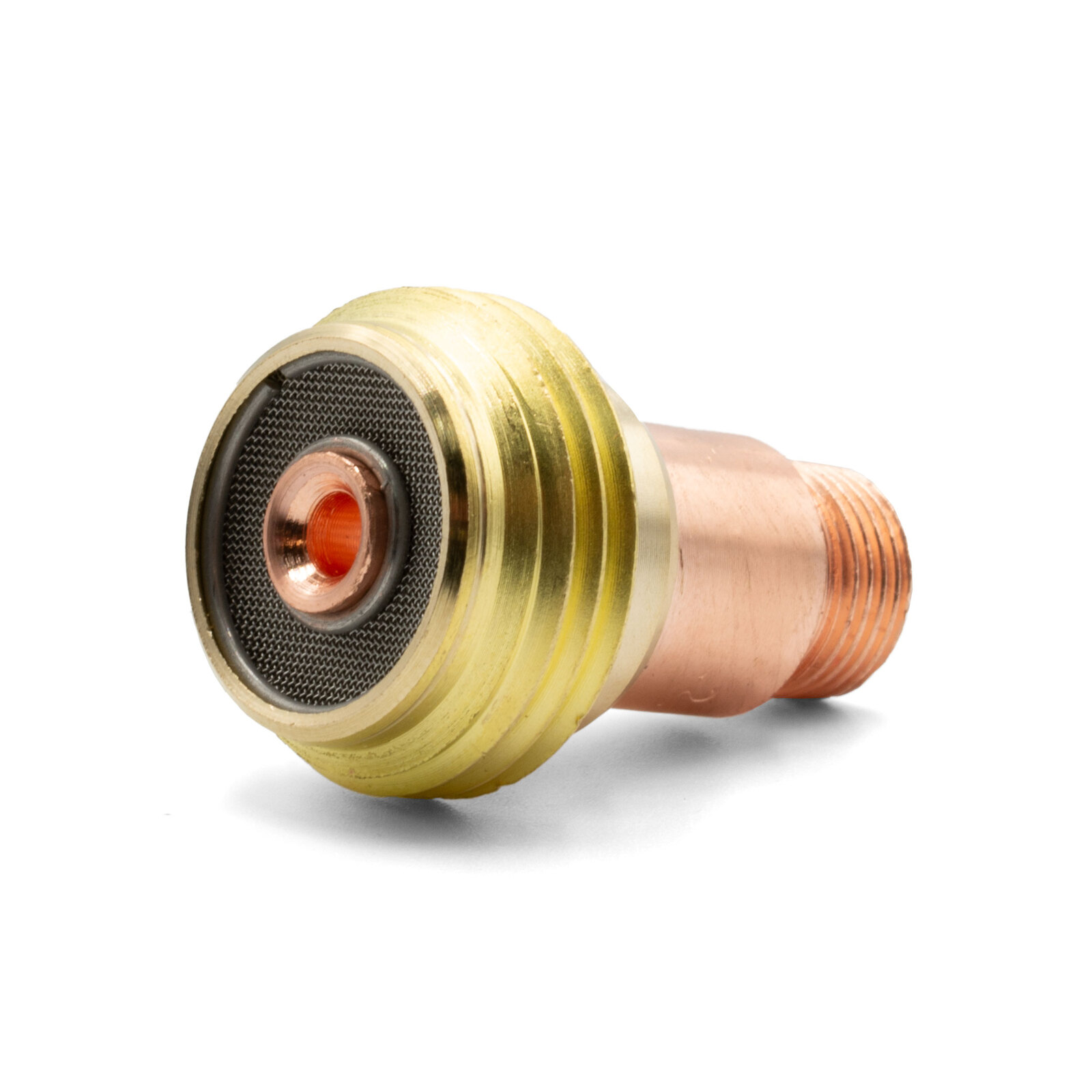

WP-17 | 18 | 26 Stubby TIG Gas Lens Collet Body 2.4mm - 20 Each

WP-17 | 18 | 26 Stubby TIG Gas Lens Collet Body 2.4mm

Introducing Hampdon Industrial TIG Gas Lens Collet Bodies, manufactured from high-quality copper to suit 17 / 18 / 26 series TIG torches. These collet bodies outshine competitors with additional mesh layers for extended durability and improved gas distribution. Upgrading to a gas lens collet body enhances your torch's performance by optimizing shield gas coverage through concentric, layered screens. Achieve superior weld zone coverage and eliminate turbulence, preventing the intake of contaminants. Elevate your TIG welding experience with Hampdon Industrial TIG Gas Lens Collet Bodies for exceptional results.

Features:

• 20 Each
• Stubby style
• To suit 2.4mm collets
• Price per body
• To suit 17 / 18 / 26 style torches (WP or SR)

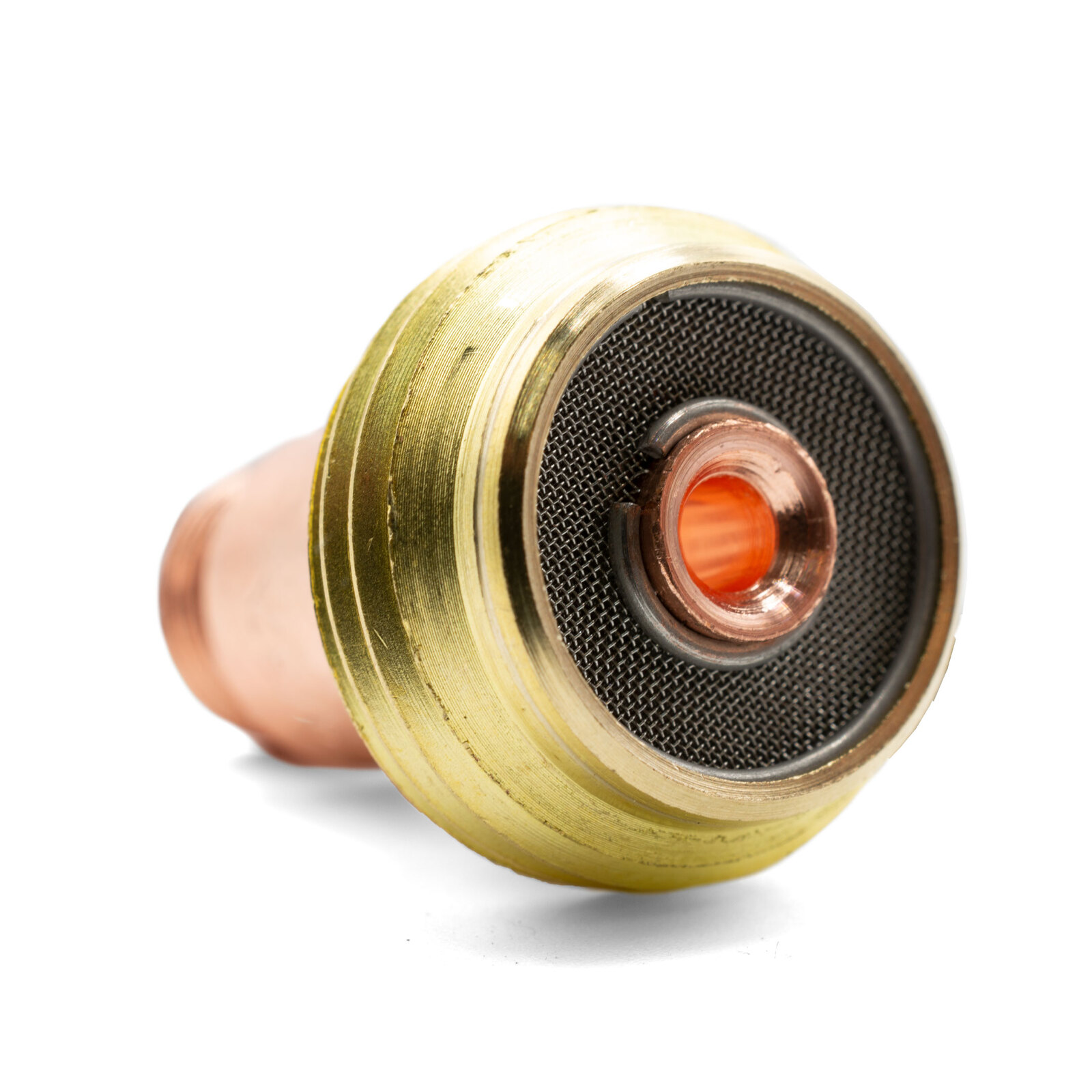

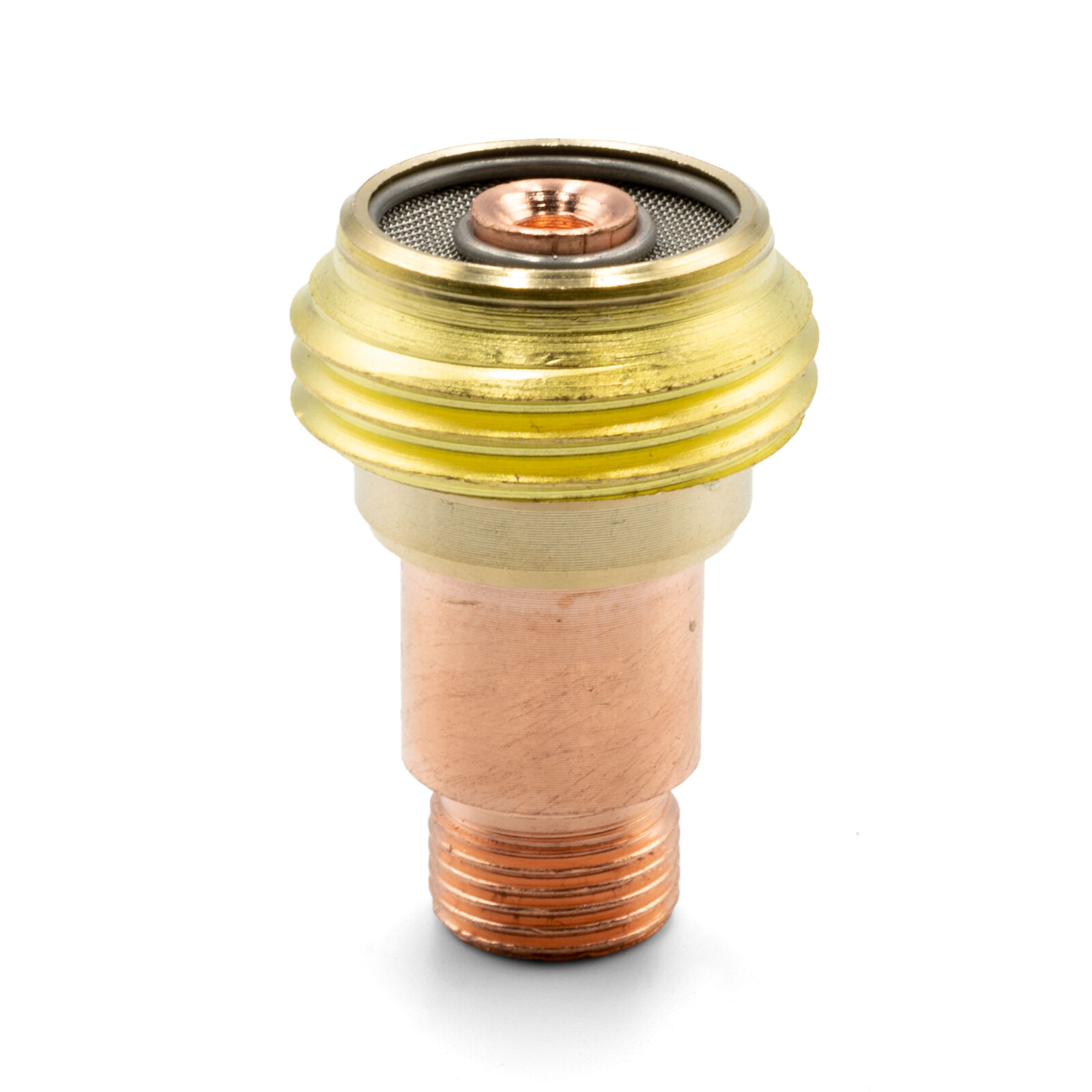

• High-quality mesh prevents foreign material from sticking and clogging
• Additional mesh layers allow more even gas flow
• Suits stubby ceramic cups
• UNIMIG Part # P45V26S

Dimension:

• 27mm Length
• 3/4" UNF Cup thread
• 3/8" UNEF Head thread

Use in conjunction with the below parts:

• Collets Standard - 10N24S
• Collets Wedge - PYR17SC332
• Insulator - 18CG20
• Cups: #6  54N16SW
  • #7  - 54N15SW
  • #8  - 54N14SW
  • #10  - 54N12SW
